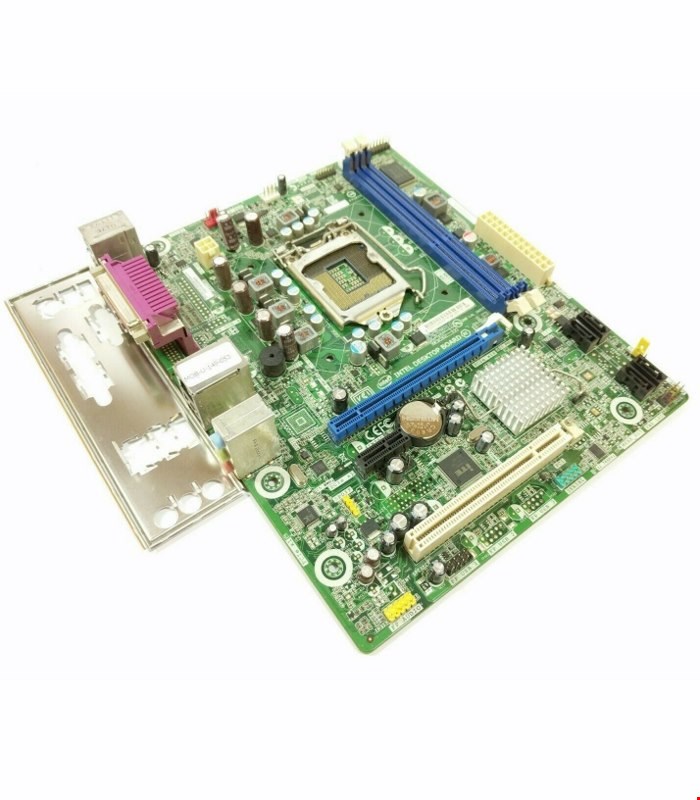

مادربورد LGA1155 DDR3 اینتل INTEL DESKTOP BOARD DH61WW به همراه پنل (استوک)

Form Factor

Micro ATX

Integrated LAN

10/100/1000

Intel Virtualization Technology For Directed I/O (Vt-D)

No

Product Type

11

Thermal Design Power (Tdp)

95 W

USB Ports Quantity

6

USB Version

2

Audio Channels

5, 1

Born On Date

Q1'11

DC Input Capable

No

Launch Date

2011-02-28T00:00:00

Market Segment

DT

PCI Support

1

Product Name

Intel Desktop Board DH61WW

Requires A Processor With Intel Graphics Technology

No

Status

7

Maximum Memory

16

Supported Raid Configuration

N/A

Processor

Processor Family

Intel

Compatible Processor Series

(Core i3, Core i5, Core i7 (Gth2 &Gth3

Processor Socket

Socket H2 (LGA 1155)

System Bus Rate

5 GT/s

Fsb Parity

No

Memory

Supported Memory Types

Dual DDR3 1066/1333/1600 O.C.

Memory Channels

2

Memory Voltage

1.5 V

ECC

No

Non-ECC

Y s

Supported Memory Clock Speeds

1066, 1333 MHz

Maximum Internal Memory

16 GB

Memory Slots

2

Weight & Dimensions

Width

243.84

Depth

198.12

Operational Conditions

Storage Temperature (T-T)

-40 - 60 °C

Operating Temperature (T-T)

0 - 40 °C

Networking

Networking Features

10/100/1000 Mbit/sec

LAN Controller

Intel 82579V

Ethernet Interface Type

Gigabit

Bluetooth

No

Internal I/O

USB 2.0 Connectors

1

S/Pdif Out Connector

Y s

CPU Fan Connector

Y s

ATx Power Connector (24-Pin)

Y s

Number Of Eatx Power Connectors

1

Chassis Intrusion Connector

Y s

Front Panel Audio Connector

Y s

Tpm Connector

Y s

Number Of SATA Ii Connectors

4

Serial Port Via Internal Header

Y s

Parallel Port Via Internal Header

No

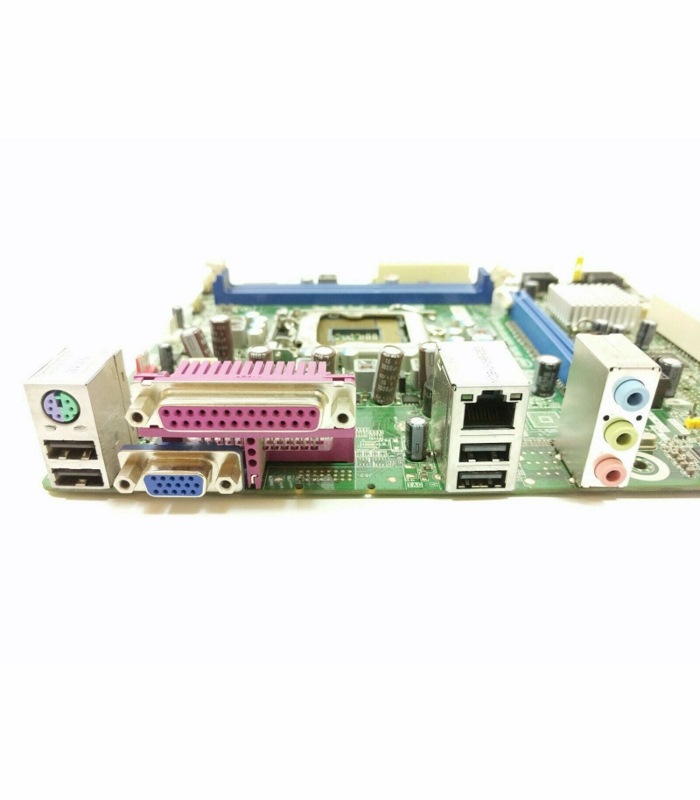

Back Panel I/O Ports

USB 2.0 Ports Quantity

4

Ethernet LAN (RJ-45) Ports

1

Parallel Ports Quantity

1

Ps/2 Ports Quantity

1

Headphone Outputs

3

S/Pdif Out Port

No

VGA (D-Sub) Ports Quantity

1

Dual Link DVI

No

Packaging Content

Drivers Included

Y s

Quick Installation Guide

Y s

Expansion Slots

PCI Express X1 Slots

1

PCI Express X1 (Gen 2.x) Slots

1

PCI Express X16 Slots

1

PCI Express X16 (Gen 2.x) Slots

1

PCI Slots

1

PCI Express Slots Version

2.0

BIOS

BIOS Type

EFI

BIOS Memory Size

32 MB

Back-To-BIOS Button

No

Other Features

Compatible Operating Systems

Windows 32/64-bit

Maximum Internal Memory

16384 MB

Embedded Options Available

No

CPU Configuration (Max)

1

Graphics Output

VGA

Graphics

Maximum Graphics Adapter Memory

1748 MB

Parallel Processing Technology Support

No

Graphics Adapter Family

Intel

On-Board Graphics Adapter

Y s

Discrete Graphics Support

1 PCIe 3.0 x16

Processor Special Features

Intel Anti-Theft Technology

No

Intel Fast Memory Access

No

Intel Vpro Technology

No

Intel Trusted exec ution Technology

No

Intel Flex Memory Access

No

Intel Aes New Instructions

No

Intel Clear Video Technology

No

Performance

Component For

PC

Motherboard Chipset

Intel H61

Motherboard Form Factor

mATX

Audio Output Channels

5.1

Raid Levels

0, 1, 5, 10 10

Audio System

Realtek ALC892

Intel Dual Display Capable Technology

No

Trusted Platform Module (Tpm)

No

Intel Remote Wake Technology

No

Intel Remote PC Assist Technology (Rpat)

No

Intel Rapid Storage Technology

No

Intel Quiet System Technology (Qst)

No

Intel Quick Resume Technology

No

Intel Matrix Storage Technology

No

Intel Client Initiated Remote Access (Cira) Technology

No

Intel Active Management Technology

No

Intel Ac'97 Technology

No

Intel HD Audio Technology

Y s

Extended Life Program (Xlp)

No

Consumer Infrared Headers

No

Energy Star Certified

Y s
